Making Arizona Placer Gold-Mining Easier: The Dry Washer
Dry-Washer Discussion
Amateur prospecting has gained popularity over the years, especially in the last ten years. The search for gold is inspiring many people, young and old, to seek their treasure. Treasure-hunting and prospecting clubs have popped up all over the country.
Unlike commercial miners, you can understand why individuals want small and lightweight tools to dig for and process gold-bearing dirt. Most people are hiking into remote areas that have been claimed. In my particular area in Arizona, there is nothing worse than toting a very heavy piece of equipment while looking out for large rocks, rattlesnakes, Gila Monsters and other cousins. Besides, a person uses up plenty of calories once on-site digging and sometimes powering processors.
An Inspired Machine
This article will explain how a dry washer works. I believe even the average reader will appreciate how simple, yet ingenious the dry washer is. The dry washer is an invention resembling some sort of medieval or renaissance machine, perhaps even associated with torture!

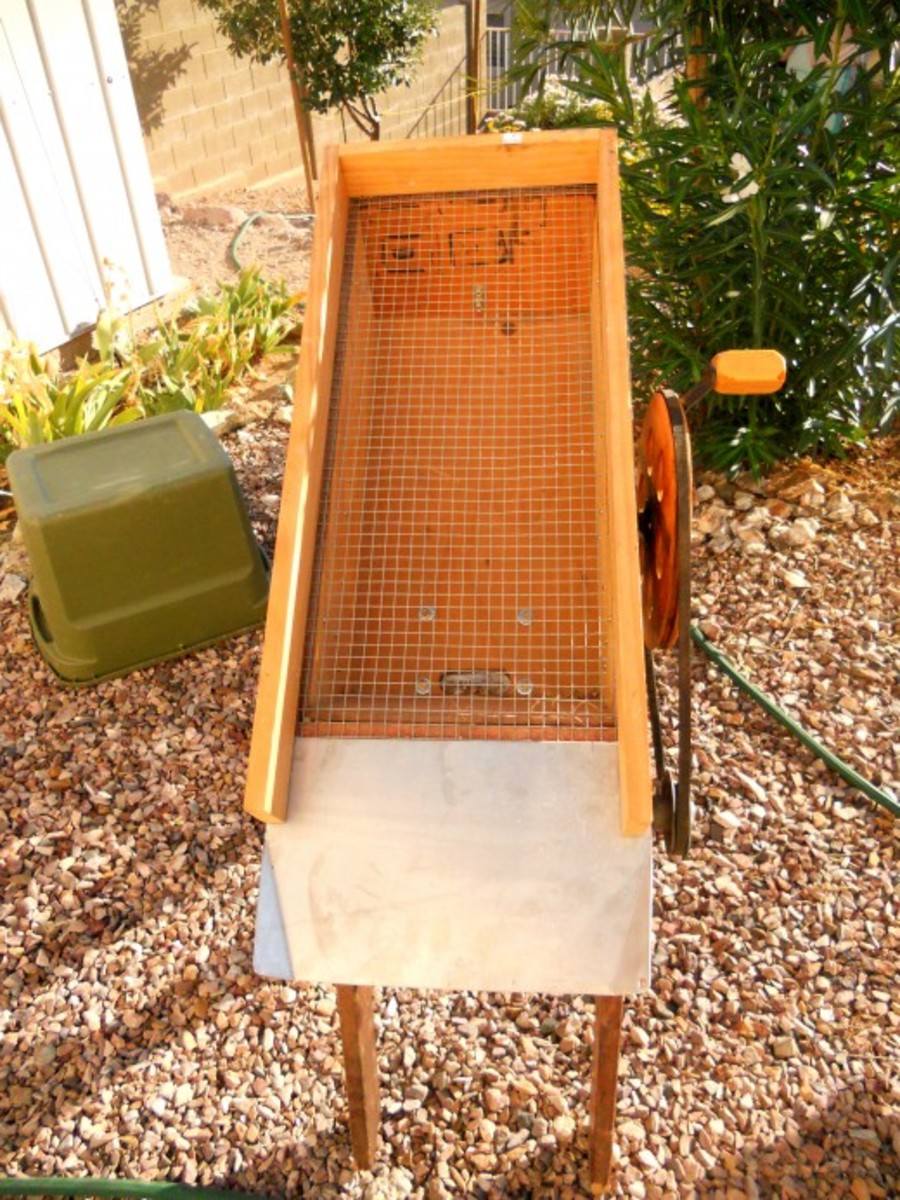

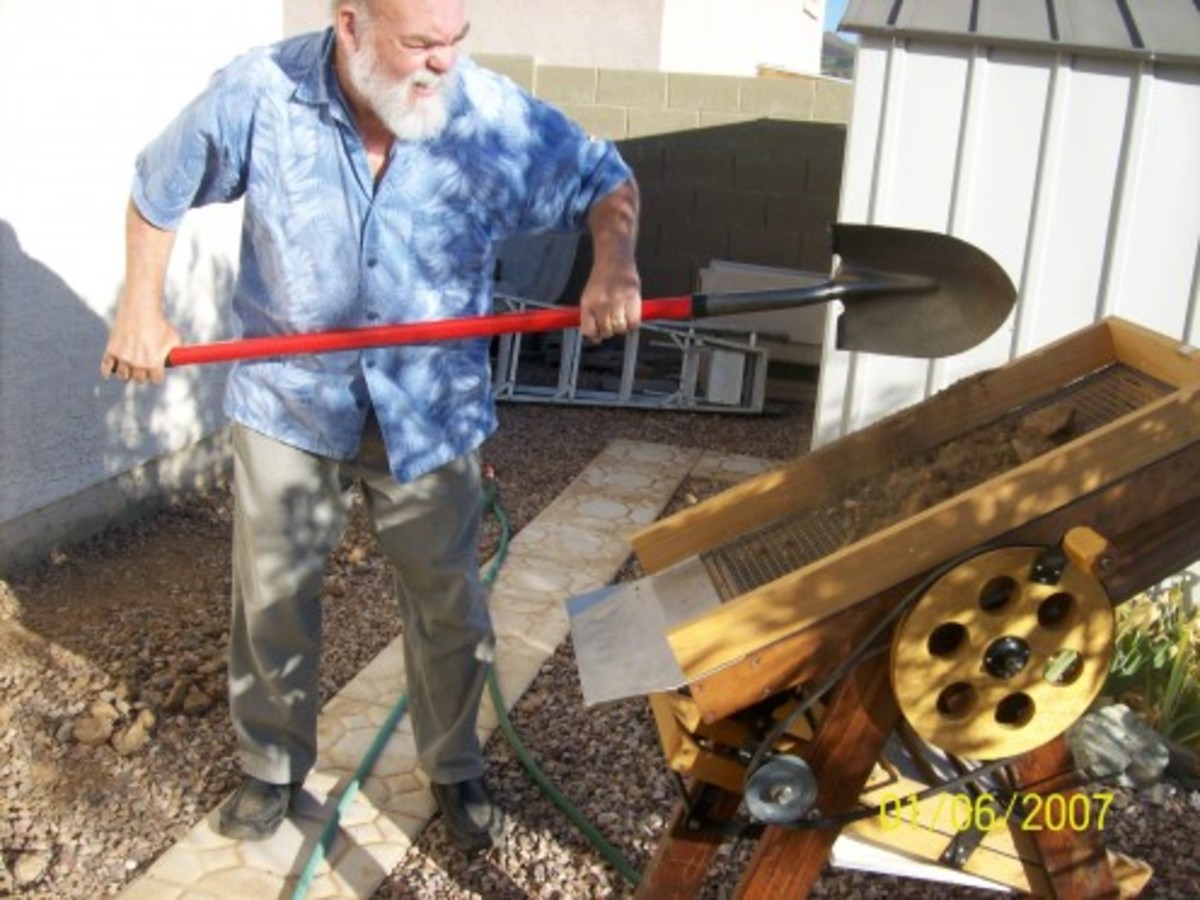

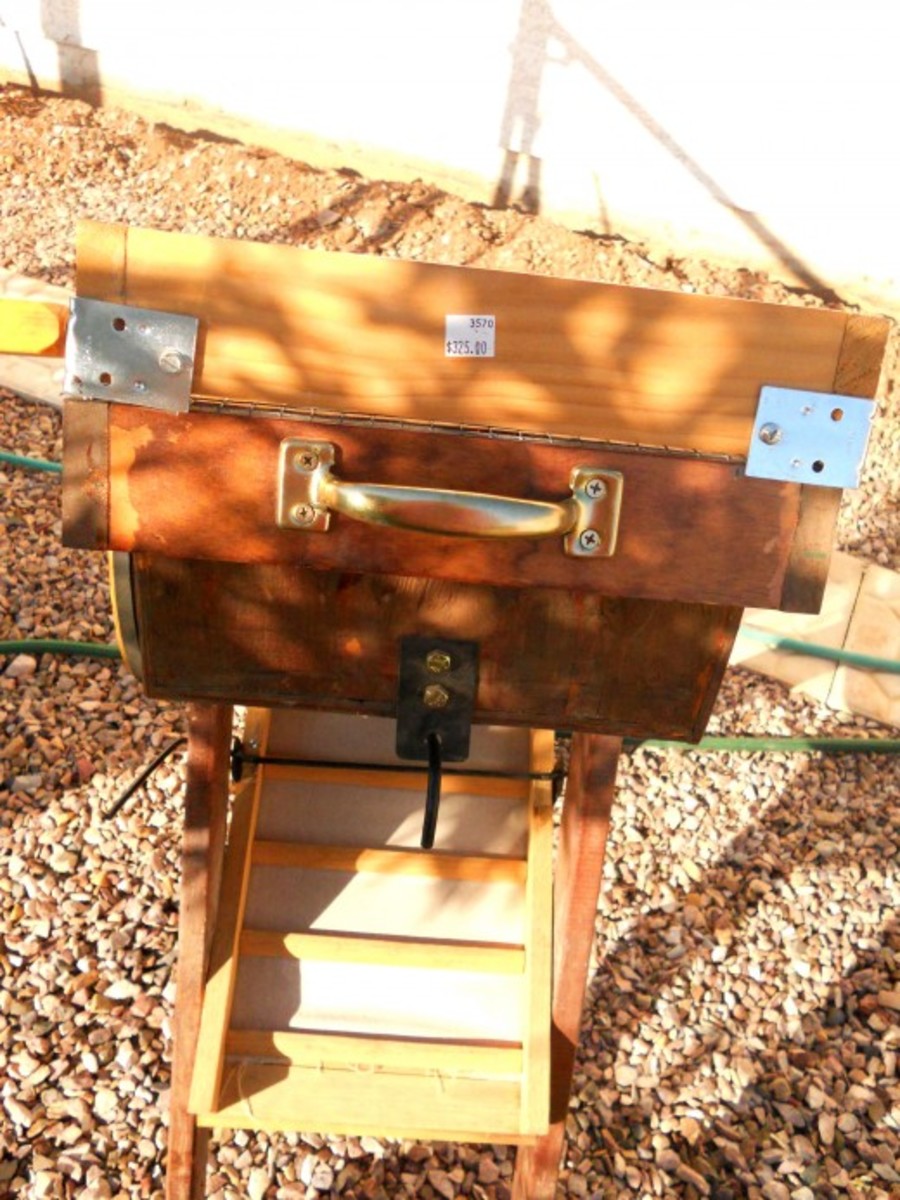

The first part of the machine located at the top is a hopper box. It is covered with a screen (in my case 1/4“) through which dirt is thrown. Each shovel full I'd “classified” (separated) into material devoid of rocks or pebbles larger than a quarter inch. Weeds and other organic matter are filtered out, also. I always look at rocks that fall off after each shovel full just to ensure I haven’t missed a gigantic gold nugget.
Having classified tons of material over the years, I have found no such nugget, but I still have dreams about it! Many people like to wave a metal detector over the rocks that pile up on the ground in front of the machine just in case. This gives real meaning to the expression “gold is precious.” Also, notice the sheet metal chute that helps guide the rocks out away from the machine so they don’t pile up right at the legs. At the back of the hopper is a rod that, when pulled, opens a trap door and allows material to fall onto a riffle box.
The Riffle Box

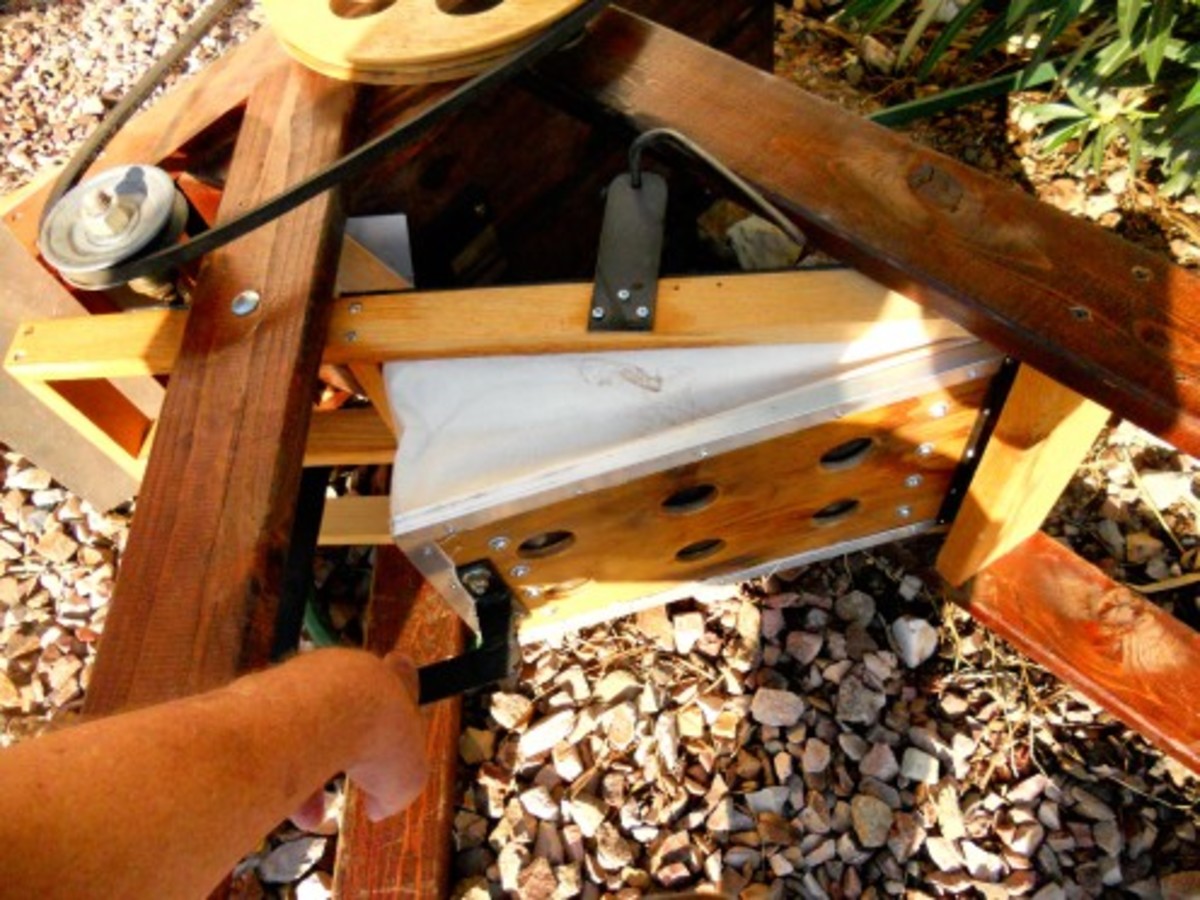

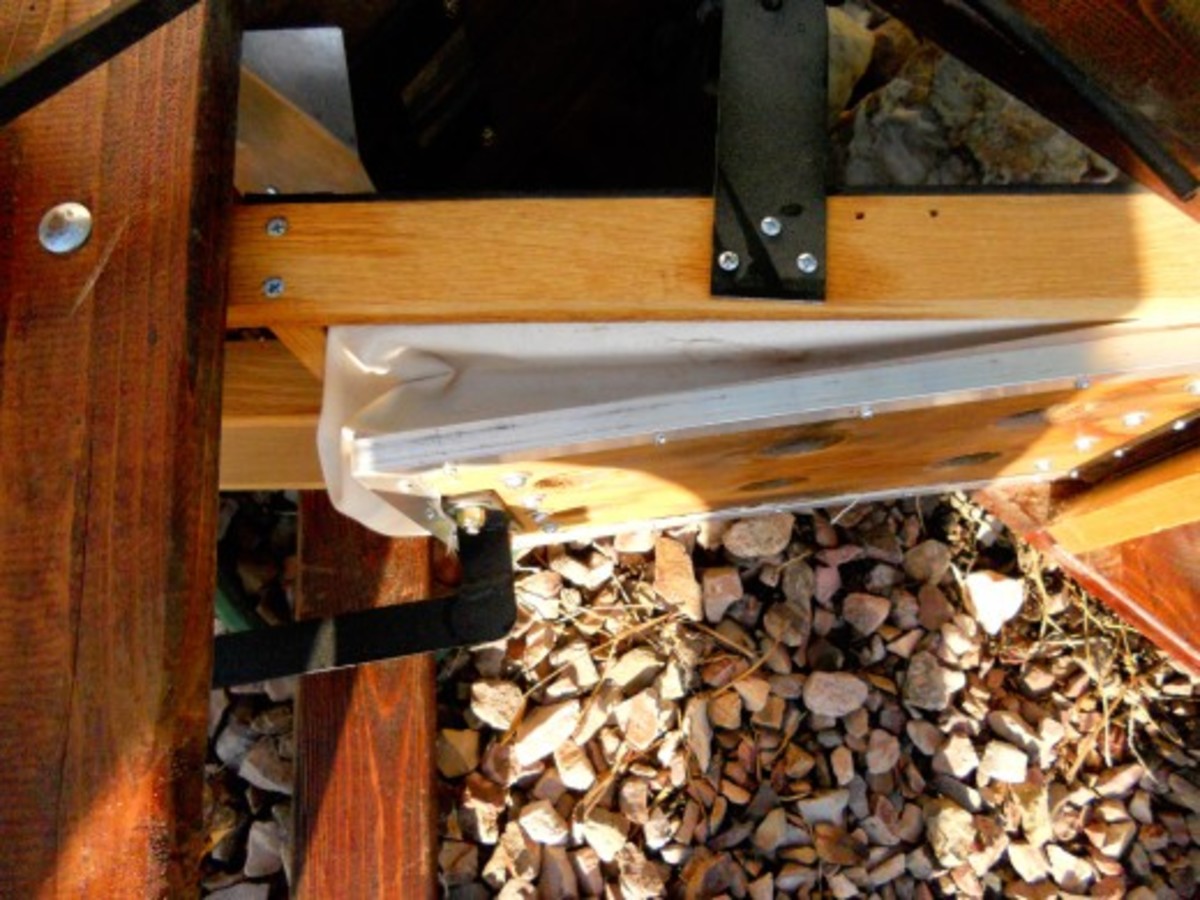

A riffle box is simply a rectangular tray with small rails periodically placed across to slow material being jostled down. As a bellows below is driven up and down it taps the box and blows air against and through cloth that makes up the riffle box bottom. Why? Gold is heavy (19 times heavier than an equivalent volume of water). When it hits a riffle it will sink and stop. By the time the material hits the bottom riffle, 98% of gold flake has been trapped behind the riffles (or so claim most commercial outfits who make dry washers).

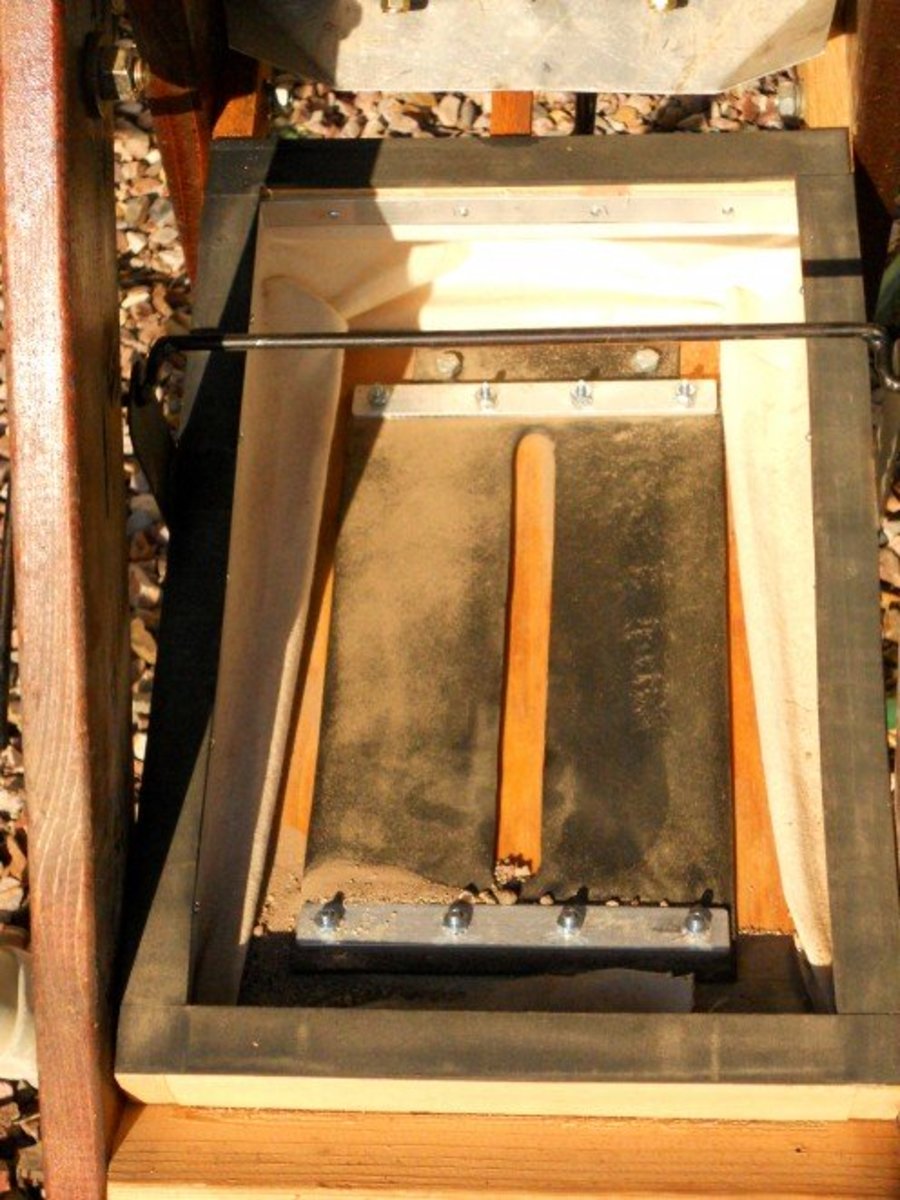

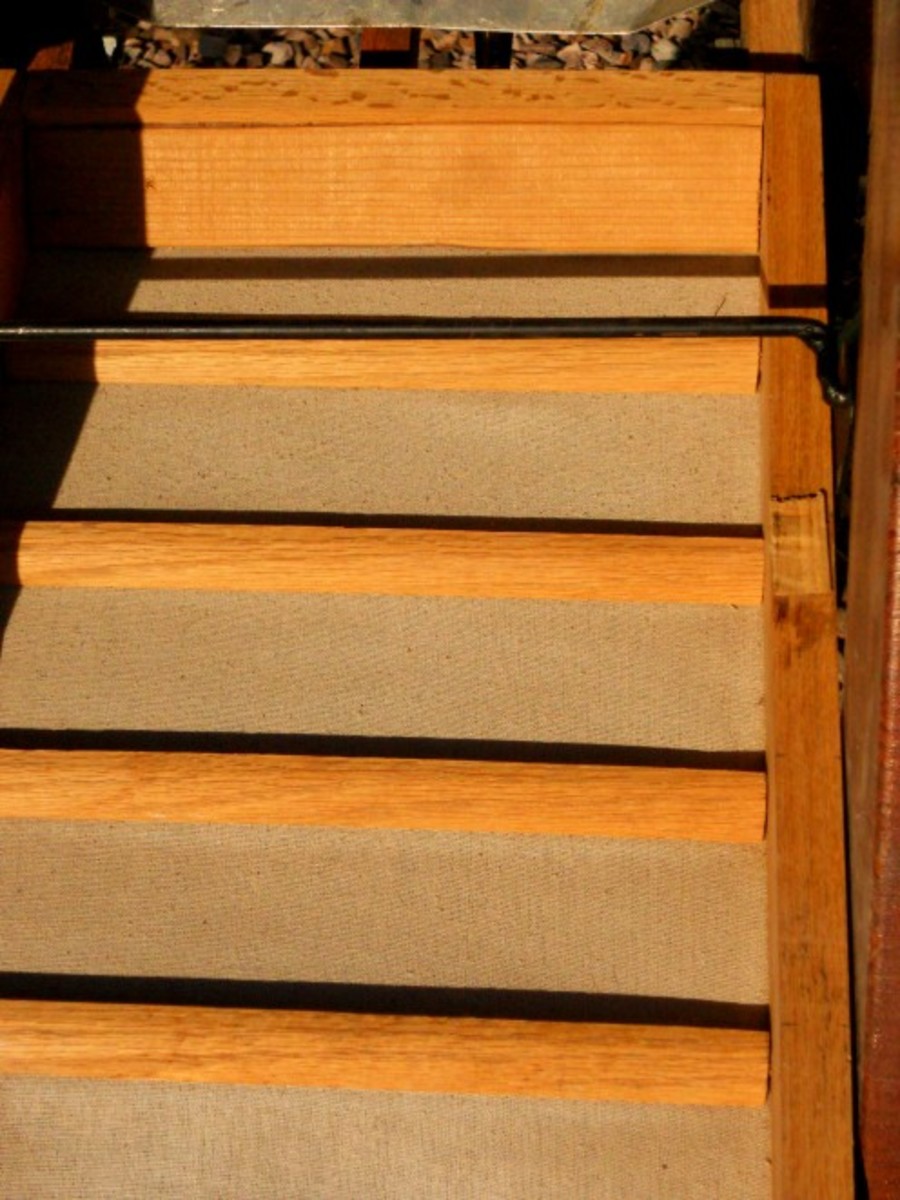

Once the material behind the riffles is all that is left, it is time to empty the riffle box. The gold is in this dirt. In the photo to the right, a black bar straddles the riffle box. When down, it keeps the riffle box from falling out. When up, it allows the prospector to remove the riffle box with the gold-bearing material. Why go to all this trouble to dry wash the dirt? Because you are trying to separate “the heavies”. If you have ever seen a portrayal of 19th-century prospector (the Treasure of the Sierra Madre comes to mind) kneeling or bending over a stream panning for gold, you can imagine what your knees and back feel like after panning for hours.
Most of the material those early prospectors washed out of their pans has already been eliminated by a dry washer. So the only reason for the dry washer’s existence is to cut down on how much panning with water you must do. To give an example, I recently dry washed twenty (20) five-gallon buckets of material. By using the dry washer I isolated 1/2 of a 5-gallon bucket with heavies. So, you can see, panning with water just 2 1/2 gallons of material instead of 20 gallons is saving your back quite a bit of strain. Heavies can consist of mercury, hematite, magnetite, lead, small quartz pebbles, and other heavy minerals. Oh, don’t forget the gold! See the photo of emptying the riffle box.
Automatic vs. Manual
Most dry washers today are built with electric motors which drive the bellows under the riffle box. To keep them light, they are frequently made of aviation aluminum and are made with folding legs, hopper, and riffle box. My dry washer is designed to be cranked manually by a human. In using this type of dry washer, I don’t have to use a battery and motor. The downside to this is that being built of wood, it is heavy. Also, it does not fold up, so it is awkward in very rough terrain.
At the same time, I don’t require a battery and motor which weighs a lot. Many dry washers with motors run $500 to $600. Mine cost about $200. There are both pros and cons to everything. There are many places I can’t go with it. Sometimes I carry buckets of dirt where I left the dry washer near my parked truck. I process the material right there. Why? Because before I got my dry washer, I brought my concentrate home in buckets and panned in the backyard. At one point the dirt pile I was building got so large that it encroached on my wife’s roses! The neighbors thought we had big moles living in the yard. When your wife and the neighbors are concerned about your sanity, it’s time to get a dry washer!
- The V-shape of the machine enhances the flow of dirt down the machine. Some people think that this design looks weird. When I first saw one in action I thought the noise and bellows motion meant the thing was about to take off!

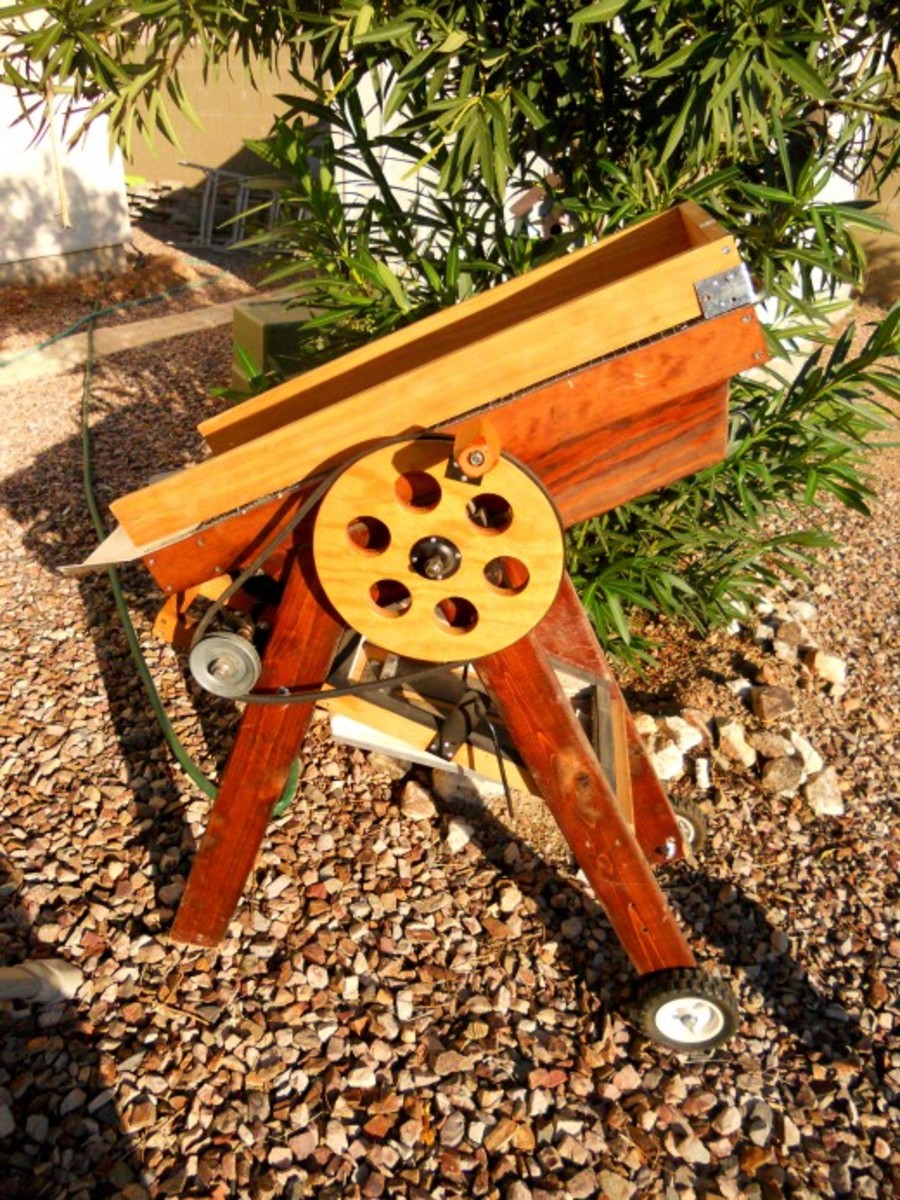

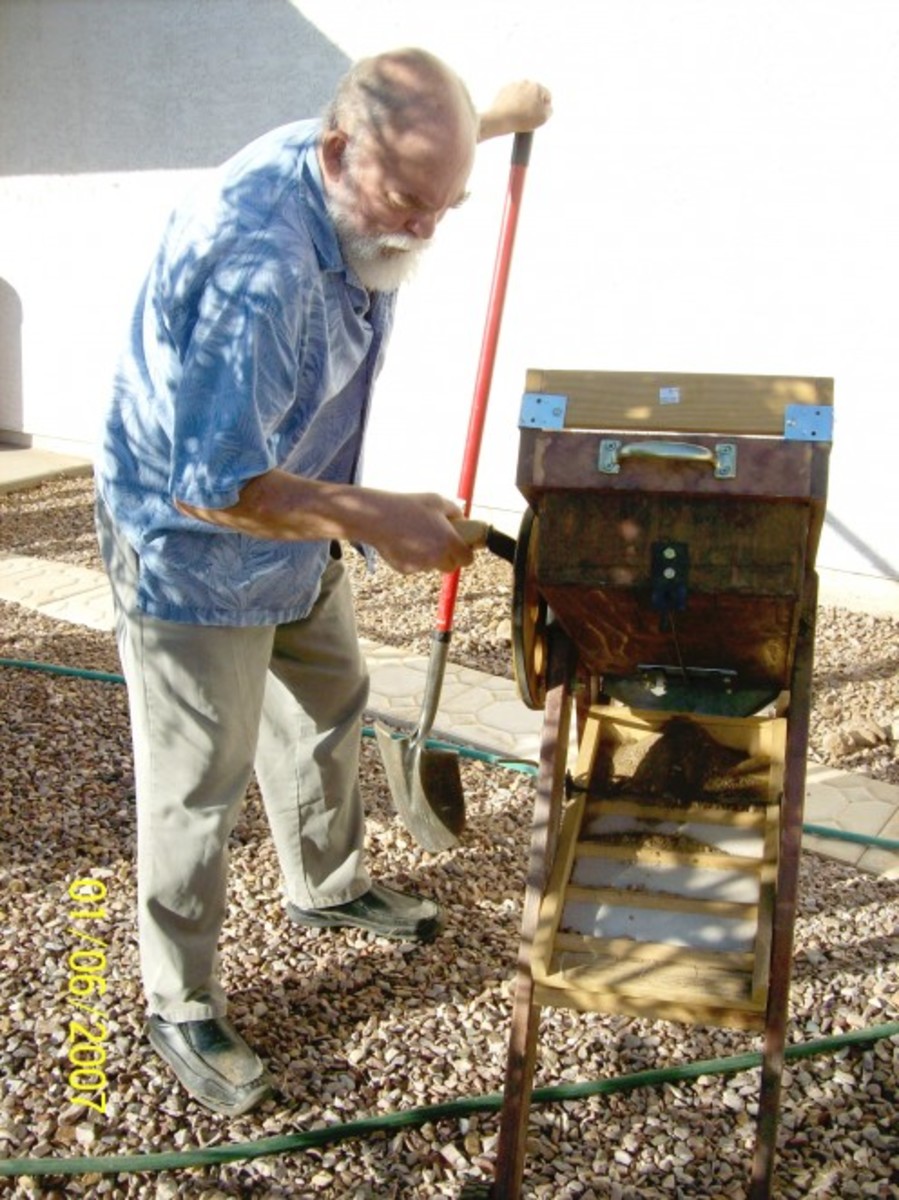

- The pulley and belt drive is connected to a crank lever under the bellows. That’s what pushes the bellows up and down. All you do is grab the crank on the pulley and start turning.

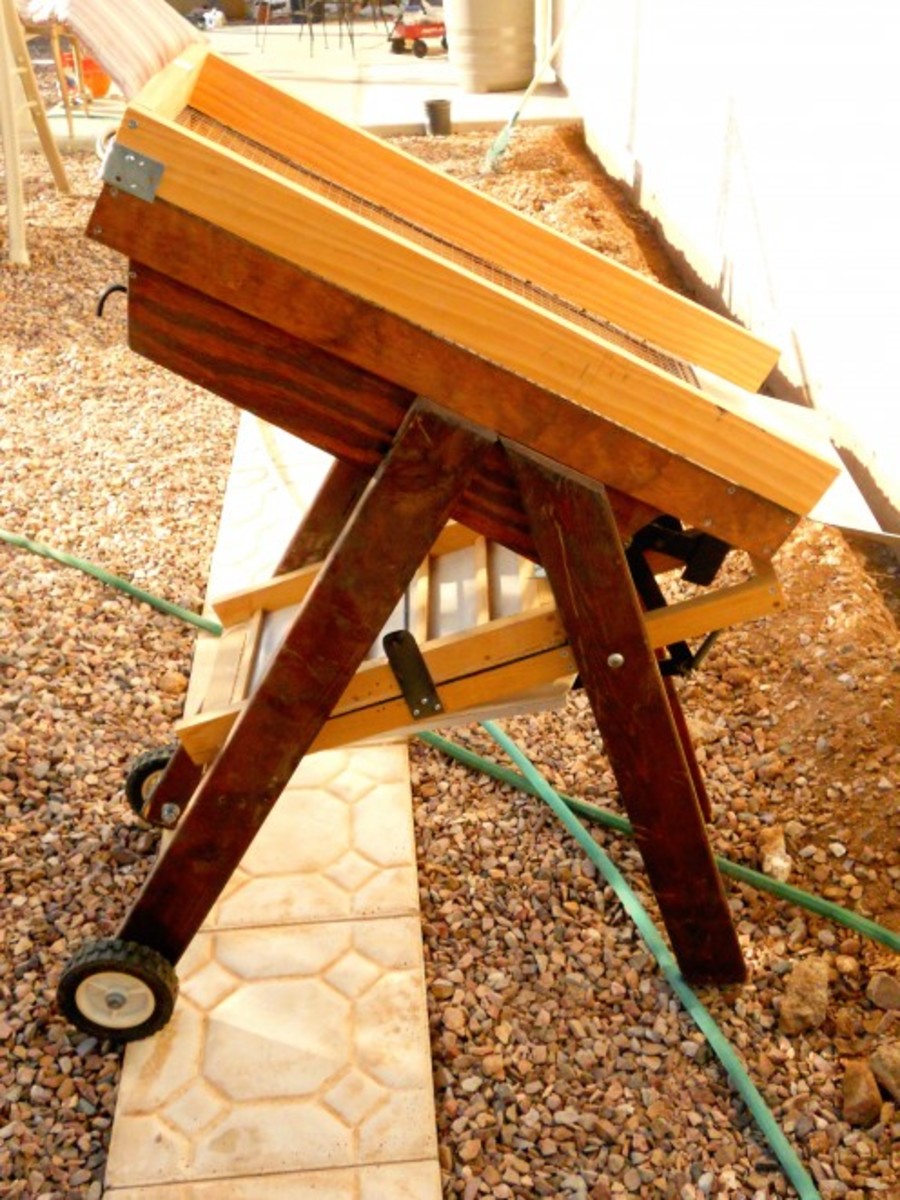

- Adjusting the shaft at the top near the hopper controls the dirt feed onto the riffle box. Pull and it opens a trap to let dirt through. Shove the shaft forward and it closes the trap door.
Gold Blasts Off
With gold selling for around $1700 an ounce, more and more folks are interested in collecting gold placer flake. These people are not interested in hunting for a gold vein (stringer), an out-cropping somewhere, or blasting to discover a lode gold bearing area. They are content to dig river beds, streams, dry washes, ancient waterways now dry, and arroyos, where flake has been deposited from mountains higher up. Since gold is soft, it flakes off pretty easily. The mountains send gold particles down as the rainwater runs over them.
If you want exercise in the outdoors and if you would also enjoy the camaraderie of club fellowship, and if you have a little gold fever, I highly recommend finding a treasure hunting club in your locale. Google GPAA. There you will find clubs in every state in the U.S. There are some clubs that are not affiliated with Gold Prospectors Association of America, but GPAA has the most clubs and it is at least a starting point for finding others with your interest. And, by the way, I haven’t found a cure for gold fever, yet!
- Golden Legends Tales of Buried Treasure
One of my favorite spots to check out more stories of gold, treasure, and silver. If you enjoy the excitement of reading about other successes, check this out.
Keene 160 Mini Drywasher (2018)
I have been intrigued by a rather new version of the dry washer that has come out by Keene. The reason being that a dry washer is necessarily dusty. A blower puffs air up to vibrate a riffle box up and down. This action then blows the lightweight material away from heavies and allows non-gold bearing material to slide off. Gold material stays behind the riffles to be unloaded and panned later.
But this presents a bit of a problem for folks with respiratory problems. You can try to stand upwind, but the wind changes directions easily in a wash in Arizona. Folks with those breathing problems should wear a mask, but may be more sensitive. Most folks wear masks anyway when using a drywasher.
Now there is a new machine that is a drywasher and high banker all in one. It is light and space-saving. This is extremely helpful when trudging across rough country with limited access. Its net weight is 29 pounds.
This unit makes the necessity of washing only dry material moot. If the material is wet, you can use the highbanker. Another claim to fame is fine gold recovery with a dustless operation, perhaps the machine for someone with asthma who wants to prospect. I have seen this machine operated at gold mining shows and I was impressed. I still can't afford it, but I was impressed!
What piece of equipment do you use most when you prospect?
- 32% dry washer
- 37% pan
- 18% sluice
- 11% high banker
- 4% rocker box
